Automatic Round Bottle Labeling Machine with Visual Camera Positioning

Name: Automatic Round Bottle Labeling Machine with Visual Camera Positioning
Brand: YIMU
Price: 10 USD

Best Automatic Round Bottle Labeling Machine with Visual Camera Positioning wholesale

Place of Origin : Shanghai, China

Brand Name : YIMU

Certification : SGS/CE

MOQ : 1

Price : $10,000-15,000

Voltage : 220V/380V

Dimension : 2000(L)*900(W)*1700(H) mm

Labeling speed : 20-60 Bottles/min

Label width : 5-240mm

Label length : 5-500mm

Labeling accuracy : 0.5 mm error

Weight : 250 KG

Conveyor speed : 0-30m/min

Bottle diameter : Below 120mm

Power supply : 700W, 110V/220V, 50/60Hz, 1 phase

Label reel inner diameter : 76mm or 40mm

Label reel outer diameter : Max 380mm

Machine size : L2000 * W800 * H1750 mm

Machine net weight : 250KG

Core components : PLC, motor

Contact Now

Automatic Round Bottle Labeling Machine with Visual Camera Positioning

1	Label width(height)	10-180mm
2	Label length	20-500mm
3	Capacity	0- 60 bottles/min
4	Conveyor speed	0-30m/min
5	Labeling accuracy	±0.5mm
6	Bottle diameter	Below 120mm
7	Power supply	700W, 110V/220V, 50/60Hz, 1 phase (customized)
8	Label reel Inner diameter	76mm or 40mm
9	Label reel outer diameter	Max 380mm
10	Machine size	L2000 * W800 * H1750 mm
11	Machine net weight	250KG
12	Date printer	Optional
13	Transparent sensor	Optional

PLC	SIEMENS / MITSUBISHI
HMI	SIEMENS / WEINVIEW
Label feed motor	RAYNEN servo motor / KINCO stepper motor
Label sensor	SICK / FOTEK
Bottle sensor	SICK / KEYENCE / PANASONIC
Motor	Taiwan Taibang
Frequency changer	Taiwan Delta

1, For automatic labeling on round bottles/jars/cans for the pharmaceuticals, daily chemicals, food & beverages industries.

2, The machine can connect with other machine using or using it alone.

3, English language HMI oerpation page, with 10 sets parameter save for different kind bottle, easy to operate.

4, Machine conveyor can suitable for different size bottles, and big labeling head sutiable different size labels, Max.label height 300mm.

4, Labeler will automatically detects the label size and bottle diameter and set the appropriate labeling parameters, a very useful feature for users with multiple products to label.

6, It is an optimal combination of speed, accuracy, stability, GMP standards, ease of use, and flexibility.

6, Backed by a strong engineering team who is ready to provide custom solutions for the unique production needs of different customers.

Product Tags:

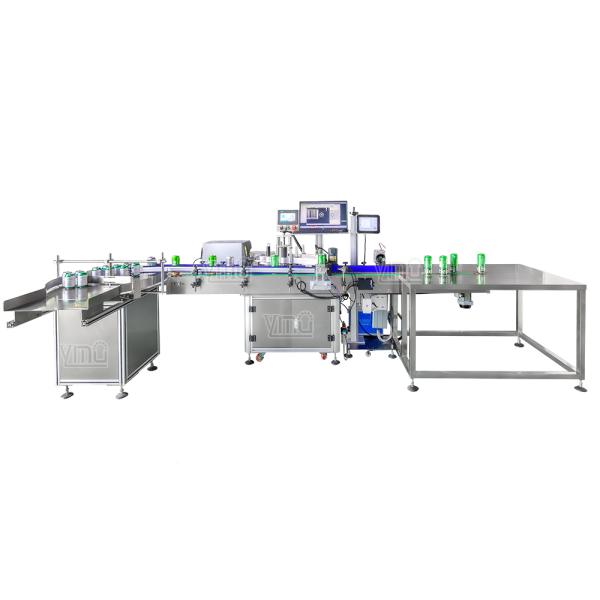

Automatic Round Bottle Labeling Machine with Visual Camera Positioning Images
